Globetrotter XL | I 7850-2 DBM
Vehicle |
Globetrotter XL | I 7850-2 DBM |
| Length | 861 cm |
| Lenght conversion | |
| Width | 233 cm |
| Height | 304 cm |
| Awning size | |
| Interior height | 208 cm |
| Chassis type | Fiat Ducato Maxi AL-KO Tiefrahmen 3-Achser |
| Engine | 180 MultiJet 3 Power |
| KW | 132 |
| BHP | 180 |
| Weight net | |
| Technically permissible maximum laden mass* | 5000 kg |
| Mass in running order* | 4030 kg |
| Permitted number of seats (including driver)* | 4 |
| Manufacturer-specified mass for optional equipment* | 569 kg |
| Designated passenger seats at standard total weight | 5 |
| Designated passenger seats at max. possible weight increase | 4 |
| Towing weight braked | 1600 kg |
| Towing weight unbraked | 750 kg |
| Wheel base | 4500 cm |
| Tyres | 225/75R 16C |
| Access locker door size | |
| Automated gearbox | |
| Motor fuel | Diesel |
| Tandem axle | |
| Stabiliser | |
| Rear garage | |
Interior equipment
| Number of sleeping berths max. | 5 |
| Beds front | 200 x 150 (l x b / cm) cm |
| Beds lateral | |
| Beds alternative | |
| Beds mid | |
| Beds rear | 200 x 150 (l x b / cm) |
| Beds crossways | |
| Beds overcab | |
| Bed convert | |
| Elevating roof with bed | |
| Bunk bed latera | |
| Single beds | |
| Bunk beds | |
| Double bed | |
| Double floor | |
| Power outlets 230 V | 9 |
| Power outlets 12 V | 2 |
| Power outlets USB | 2 |
| Swivel driver seat | |
| Swivel passenger seat | |
| Transformer | |
| Happy Family layout |

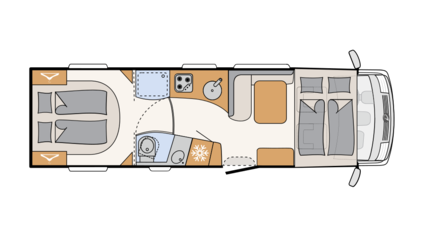

Layout
Fiat chassis
- Fiat Ducato Maxi ALKO low-platform 3-axle (5,000 kg) MultiJet 180 (2.2 l / 180 hp) Heavy Duty, 9-speed torque converter automatic transmission
- Steel rims 16" (225/75 R16C) incl. wheel trims
Fiat chassis features
- Wireless phone charger in the central console
- 10" DAB+ Naviceiver incl. Wireless Apple CarPlay & Android Auto, Camper Navigation and Steering Wheel Remote Control
- Digital speedometer with large, digital 7" display
- Dashboard with aluminium application
- Reinforced spring for front axle
- Leather steering wheel and gear knob with leather sleeve
- Diesel tank 90 litre incl. 19L AdBlue tank
- Driver's cab automatic A/C
- ABS (anti-lock braking system) / EBD (electronic brakeforce distribution)
- ESP incl. ASR, Traction Plus, Hill Holder and Hill Descent Control
- Tyre inflation kit and towing eye
- Automatic Brake Assist after a collision
- Front-wheel drive
- Anti-theft device
- Cruise control
- Trailer Stability Assist
- Driver and passenger detection
- Crosswind Assist
- Low-vibration coach-style exterior mirrors that can be heated and adjusted electrically (two-piece)
- Additional protection for radiator through grille at front of vehicle
- Captain's chair with integrated headrest, rotatable, height and tilt adjustable incl. two padded armrests
- Pleated privacy blind in the windscreen can be adjusted horizontally and laterally for the best insulation
- Cup holder in the centre of the dashboard
Exterior features
- Stable, double-glazed flush-fitting windows with integrated blinds and flyscreens
- Central locking for the drive's cab, habitation and garage door
- Electric closing aid for habitation door
- Floor thickness: 43 mm, side wall thickness: 34mm and roof thickness: 35 mm
- Panoramic skylight 40x40 cm with flyscreen and blackout blinds above the pull-down bed
- Skylight 40 x 40 cm above the lounge
- GRP roof
- Side panels and rear panel in smooth aluminium sheets
- Rear garage: two garage door with one-hand operation, rear lowering (250 kg), heated, lashing rails, LED lights across the entire width, 230 V socket, GRP anti-slip flooring and fleece cove
- GRP rear in modern coach look with 3rd brake light, LED rear lights and dynamic indicators
- Double floor storage, some of which can be loaded across almost the entire vehicle width
- Habitation access with comfortable coupe entrance
- Lifetime Plus construction technology: rot-free superstructure with no wood inserts, XPS insulation with GRP cladding on the underslung and roof
- Bedroom window right and left
- Habitation access with comfortable, wide, electric step
- 70 cm wide habitation door with window and blind
- Flyscreen habitation door
Exterior design
- Exterior body painted in white
Interior design
- Amberes Oak wood décor
- Samir upholstery
Textile equipment
- Fixed beds with ergonomic wooden slatted frames and 150 mm thick 7-zone premium mattresses made of climate-regulating material
Furniture layouts
- Sideboard incl. pull-out leg support, drawers and illuminated wall panels
- AirPlus overhead locker rear ventilation to avoid condensation
- Electric pull-down bed in the driver's cab
- Cosy L-shaped lounge with free-standing, rigid table base and two integrated 3-point seatbelts
- Overhead locker doors with soft-close function
- High-level double bed
- No steps in living room
- Full body mirror
- Wardrobe to the left and right of the queen-size bed
- Wardrobe floor-to-ceiling with convenient linen drawers in upper area
- Floor-to-ceiling wooden sliding door to the bedroom
Kitchen
- Floor-to-ceiling fridge with separate freezer compartment and automatic energy selection (AES) (136 l)
- Worktop made of solid surface material
- Gourmet kitchen: three-ring hob, large drawers with soft-close function, cutting board, apothecary drawers, waste bin and central locking
Bathroom
- Shower grid
- Additional window in bathroom
- Equipped with cabinets, storage compartments, hooks, large mirrors and a height-adjustable shower head
- Shower panel and bathroom accessories in black
- Large bathroom with separate shower and toilet with locking door to the lounge
Multimedia
- Flat-screen TV bracket
Heating
- Heat exchanger for hot-water heating
- Hot-water heating with boiler, automatic drain valve and shut-off valve for the sleeping area and digital control panel
Electrical installation
- Awning light 12 V
- Electric block with integrated overvoltage protection and separate ground fault circuit breaker
- Number of sockets 1x 12V, 8x 230V, 2x USB
- Premium on-board control panel with touchscreen
- LED lighting throughout the vehicle
- Dethleffs connect - System Control Unit
- Automatic switch-on/disconnect for starter battery, body battery and refrigerator
- Spotlights in the roof lining above the habitation door
- Leisure battery AGM, 95 Ah
- Two-tone sockets and switches
- Kitchen back panel illuminated
Water supply
- Pressurised water pump system
- Switch for water pump
- Fresh water and waste water tanks installed in double floor (insulated area)
Gas supply
- Storage space for 2 gas bottles with a filling weight of 11 kg each, with simplified access
Fiat chassis
- Dethleffs 16" alloy wheels (for 3 axles)
Weight upgrade
- Load increase to 5,400 kg
Fiat chassis features
- LED low beam
- Air suspension front and rear axle (3 axles)
- Air suspension rear axle (3 axles)
- Hydraulic lifting jacks with automatic levelling and weighing function
- SKA captain seat with air suspension
- Extra seat incl. side couch instead of sideboard
- Rear corner steadies (2 pieces)
- Tow bar (check permissible gross towing weight for trailer operation)
- Electric windscreen blinds
- Lateral sun shades, as a roller blind for driver and passenger
- Seat heating and ventilation of the seat area
Exterior features
- Omnistor cassette awning 6.0 m (manual)
- Omnistor cassette awning 6.0 m (electric)
- Panorama skylight 70 x 50 cm in the bedroom
- Double floor in rear garage
- Panoramic skylight 75x105 cm incl. illuminated roof lining in the lounge
- Roof vent with fan (fitted in the passageway to the bathroom)
- Driver's cab door left
Exterior design
- Exterior paint on the front bonnet, GRP rear and side panels in metallic titanium silver
Interior design
- Individual genuine leather
- Collin real leather upholstery
- Melia upholstery
Textile equipment
- Carpet, loose
Furniture layouts
- Overhead lockers in the driver's cab instead of pull-down bed
- Isofix child seat bracket for third and fourth seat facing direction of travel
- Bed convert for seating lounge transverse
Kitchen
- Extractor fan (extracted air) with draught stopper
- Fridge (177 l), can be opened on both sides, with integrated oven
- Winter cover for refrigerator vents
- Interior design GT incl. extended kitchen back panel
Bathroom
- Toilet ventilation via the roof
- Ceramic toilet
- Macerator toilet with waste-holding tank
Multimedia
- Preparation for radio system incl. sound package in the driver's cabin
- Pre-wiring for first reversing camera
- Additional flat-screen TV bracket
- Pre-wiring for satellite system
- Automatic satellite system 85 Twin
- Pre-wiring for second reversing camera
- Second reversing camera in rear moulding
- Top view 360° camera
- 32" flat-screen TV
- DAB+ radio antenna mounted on the roof
- Sound Package Plus
- Integrated single-lens reversing camera
- Additional 22" flat-screen TV (incl. DBV-T 2 HD/T, DVB-S2 receiver, DVD, HDMI, wide-angle)
Heating
- Hot-water carpet for the driver's cab
Air Conditioning
- Roof A/C
- Pre-wiring for roof A/C
Electrical installation
- Indirect ambient lighting above the overhead lockers
- Victron control panel above the habitation door
- Electrical block EBL 111
- High-current module
- Victron PowerAssist and PowerControl
- Victron Energy MultiPlus charging/inverter combination 3000W/120A
- Indirect lighting of the sideboard/side couch on the right and of the entrance module as well as of the kitchen tall cupboard
- Pre-wiring for solar
- Victron Energy MultiPlus charging/inverter combination 1600W/70A
- 168 Ah lithium battery
- 336 Ah lithium battery
- Dimmable, indirect ambient lighting on the walls
- Solar power system 100 watt
- Roof lining with indirect lighting
- Indirect lighting in the bathroom with illuminated shower panel
- Plinth lighting throughout the vehicle
Water supply
- Outdoor shower installed in rear garage (hot/cold water)
Gas supply
- Outdoor gas socket gas pressure 30 mbar
- Automatic gas cylinder switchover incl. crash sensor, EisEx and gas filter
Safety
- Safe
- Alarm system (for door with central locking)
- Smoke detector
- 2 kg fire extinguisher
1) The prices are non-binding recommendations of the manufacturer including VAT and excluding shipping costs. This does not constitute a binding offer. Changes and errors excepted. Scope and possible combinations may vary and illustrations may be similar. For binding information, please contact your dealer.
*The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.
The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that Dethleffs uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Dethleffs.
The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.
Detailed information & explanations on the subject of weight and the configuration of the vehicle can be found in the section Legal information.
